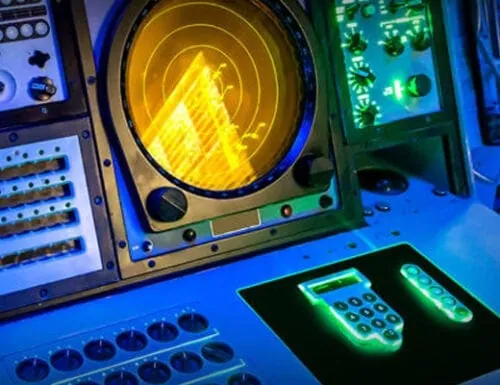

- Aerospace and defense: These connectors are used in aircraft and military equipment to ensure reliable power transmission under extreme conditions.
- Medical devices: Equipment such as MRI machines and X-ray systems rely on high-voltage connectors for accurate and safe operation.
- Industrial machinery: Manufacturing and processing equipment often require a high-voltage connector to manage large power loads efficiently.

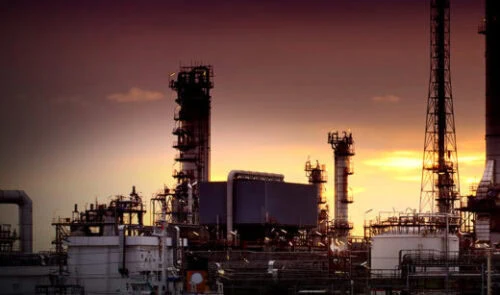

- Power generation: This type of connector is essential in power plants and electrical grids for transmitting electricity over long distances.
- Telecommunications: A high-voltage connector is utilized in telecommunications infrastructure, including cell towers, to transmit power efficiently and reliably to equipment such as antennas and signal amplifiers.
- Electric vehicles (EVs): EVs rely on high-voltage connectors for battery charging and power distribution within the car. These connectors must handle high currents and ensure efficient energy transfer to support the vehicle’s operation.
- Data centers: These connectors distribute power to servers, networking equipment, and cooling systems. They ensure reliable operation and minimize energy losses in large-scale computing environments.
- Marine and offshore applications: These connectors manage electrical power for propulsion systems, navigation equipment, and offshore drilling operations in marine vessels and platforms.
Exploring the Power and Potential of High-Voltage Connectors
High-voltage connectors are specialized devices designed to safely and efficiently transmit electrical power at high voltages. They can withstand up to 1,000 volts, extreme temperatures, and harsh environmental conditions, ensuring reliability and safety in critical operations. This makes them essential for applications where standard connectors would fail.
Connectronics Corp. is a leader in delivering cutting-edge, high-voltage connector solutions tailored to meet the rigorous demands of diverse industries. Our commitment to innovation and quality ensures that our connectors meet and exceed expectations in performance and reliability.
Key Features of High-Voltage Connectors
Several key features distinguish high-voltage connectors, including:
Insulation
High-voltage connectors are equipped with advanced insulation materials to prevent electrical breakdown and ensure safety during operation. These materials have high dielectric strength to withstand high voltages without allowing current leakage or arcing. Common materials include ceramics, glass, and certain types of plastics, such as polytetrafluoroethylene (PTFE) or polyethylene. These materials can provide robust insulation even under high electrical stress.
Voltage Rating
A high-voltage connector is rated to handle specific voltage levels, ranging from hundreds to thousands of volts, depending on the application. The voltage rating specifies the maximum voltage that can be safely transmitted through the connector without risk of electrical breakdown or insulation failure. Manufacturers carefully design connectors with appropriate spacing and insulation materials to achieve the desired voltage rating.
Contact Design
Contacts in high-voltage connectors are designed to ensure reliable electrical connection while minimizing the risk of arcing or corona discharge, which occurs at high voltages. Proper contact design is crucial to preserving electrical integrity and preventing electrical faults. This often includes increased spacing, specialized shapes to reduce electric field concentration, and materials that resist wear and maintain consistent contact pressure over time.
Durability
A high-voltage connector is designed to withstand mechanical stresses such as vibration, physical impacts, and mating forces without compromising electrical performance or safety. They are typically constructed from durable materials such as metal alloys (e.g., brass, stainless steel) or high-strength plastics that offer mechanical stability and resilience.
Contact Resistance
Low contact resistance is essential for efficient power transmission, particularly in high-power applications. It reduces heat generation and energy loss, ensuring reliable performance over time. High-voltage connectors are engineered to minimize resistance through precision manufacturing techniques and high-quality contact materials.
Environmental Protection
High-voltage connectors often operate in challenging environments exposed to moisture, dust, chemicals, and temperature extremes. To maintain performance and reliability under these conditions, connectors may feature sealing gaskets, protective coatings, or enclosures that provide an ingress protection (IP) rating. These measures help prevent environmental factors from compromising insulation or causing corrosion, ensuring the connector operates safely and effectively over its lifespan.
Safety Features
Safety is paramount in high-voltage applications, and connectors incorporate various features to minimize risks. This includes keying or coding systems to prevent incorrect mating with incompatible connectors ensuring connections are made only with compatible devices. Additionally, connectors may consist of integral shielding to minimize electromagnetic interference (EMI) and mechanisms to prevent accidental disconnection during operation.
Applications of High Voltage-Connectors
High-voltage connectors are pivotal in several industries due to their ability to manage high electrical loads. Key applications include:
Latest Trends in High-Voltage Connector Technology
High-voltage connectors are continually evolving and driven by technological advancements and industry demands. Recent developments include:
Choosing the Right High-Voltage Connector
Selecting the appropriate high-voltage connector for a specific application involves considering several factors
- Voltage and current ratings: Ensure the connector’s voltage and current ratings exceed your application’s requirements for safety and reliability.
- Connector type and configuration: Choose a connector type (e.g., circular, rectangular) and configuration (number of contacts, mating interface) that fits your application’s space and compatibility needs.
- Mechanical and environmental considerations: Select a connector with robust mechanical construction and an appropriate IP rating for your operating conditions.
- Compliance and standards: Verify that the connector meets industry standards and regulatory requirements for safety and performance.
Custom High-Voltage Connectors From Connectronics Corp.
At Connectronics Corp., we specialize in creating a custom high-voltage connector tailored to meet specific project needs. Our comprehensive process ensures that every connector delivers exceptional performance and reliability:
- Collaboration: We engage closely with our clients to thoroughly understand their specific requirements and challenges. This allows us to tailor our solutions precisely to your needs, ensuring optimal functionality in your application.
- Design and Development: Our experienced engineering team takes your specifications and transforms them into robust connector designs. We create detailed prototypes and conduct rigorous testing to validate that each connector meets all technical and operational requirements.
- Production and Validation: We use high-quality materials and adhere to stringent quality control measures to produce connectors that are durable and capable of withstanding harsh environments. Each connector undergoes thorough validation to confirm its performance and reliability.
- Support: Our commitment doesn’t end with delivery. We provide ongoing support and exceptional customer service to ensure that our connectors continue to perform optimally throughout their lifecycle.
