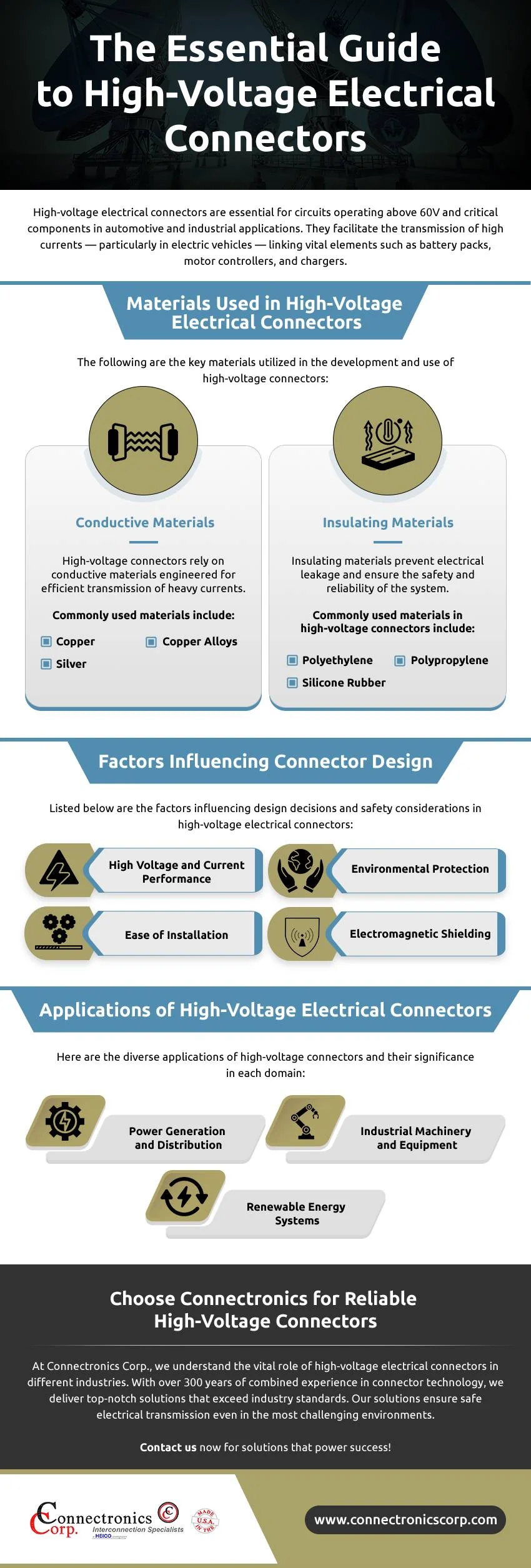

High-voltage electrical connectors are essential for circuits operating above 60V and critical components in automotive and industrial applications. They facilitate the transmission of high currents — particularly in electric vehicles — linking vital elements such as battery packs, motor controllers, and chargers.

This article explores the crucial role of high-voltage electrical connectors in diverse industries. We will delve into their applications, materials, and safety considerations, particularly in high-power environments.

Materials Used in High-Voltage Electrical Connectors

The following are the key materials utilized in the development and use of high-voltage connectors:

Conductive Materials

High-voltage connectors rely on conductive materials engineered for efficient transmission of heavy currents. Commonly used materials include:

Copper: This is known for its excellent conductivity and mechanical properties, carrying heavy currents effectively.
Copper alloys: Various copper alloys, such as brass and bronze, are utilized in high-voltage electrical connectors to enhance specific properties such as strength, corrosion resistance, and conductivity.
Silver: This boasts superior conductivity compared to copper and is sometimes used in specialized high-performance connectors where maximum conductivity is required.

Insulating Materials

Insulating materials prevent electrical leakage and ensure the safety and reliability of the system. Commonly used materials in high-voltage connectors include:

Polyethylene: This is known for its excellent dielectric properties and mechanical resilience.
Polypropylene: Similar to polyethylene, polypropylene offers good dielectric properties and mechanical strength.
Silicone rubber: This is highly valued for its flexibility, thermal stability, and resistance to environmental factors.

Factors Influencing Connector Design

Listed below are the factors influencing design decisions and safety considerations in high-voltage electrical connectors:

High Voltage and Current Performance

High-voltage connectors must be designed to handle the elevated voltage and current levels present in high-power environments. This involves selecting materials and configurations that efficiently conduct electricity while minimizing resistance and heat generation. Connectors must also maintain stable electrical properties at high voltages and currents to ensure reliable performance and safety.

Environmental Protection

Electrical connectors often face harsh environmental conditions, including high temperatures, vibrations, impacts, dust, and water exposure. Design decisions must prioritize integrating protective measures to ensure the connectors withstand such conditions without degradation. Environmental protection guarantees connectors remain undamaged and reliable in tough situations.

Ease of Installation

High-voltage connectors should be designed for easy installation to minimize downtime and ensure efficient system integration. This involves connector form factor, mounting options, and connector interface compatibility. Connectors should feature intuitive designs and standardized connection methods to simplify installation and minimize installation errors.

Electromagnetic Shielding

These connectors should possess effective shielding capabilities to prevent electromagnetic interference (EMI) and ensure signal integrity in sensitive electronic environments. This includes using shielding materials and designs to reduce electromagnetic emissions and prevent external interference. Effective electromagnetic shielding maintains signal quality in noisy environments.

Applications of High-Voltage Electrical Connectors

Here are the diverse applications of high-voltage connectors and their significance in each domain:

Power Generation and Distribution

High-voltage connectors are instrumental in power generation and distribution, ensuring reliable long-distance electricity transmission. They interconnect high-voltage cables, transformers, and other electrical components in power plants and substations. These connections maintain the efficiency of the electrical network from power stations to end-users.

Industrial Machinery and Equipment

In industrial settings, high-voltage connectors are vital for powering heavy machinery and equipment. They facilitate the safe transmission of electricity to motors, actuators, and control systems. Manufacturing, mining, and transportation industries rely on these connectors to uphold productivity and improve tasks such as powering conveyor belts and operating cranes.

Renewable Energy Systems

These connectors facilitate renewable energy transmission to the grid by interconnecting solar panels, wind turbines, and other components that ensure efficient energy conversion and distribution. As the demand for clean energy increases, high-voltage connectors will continue to support the transition to renewable sources.

Choose Connectronics for Reliable High-Voltage Connectors

At Connectronics Corp., we understand the vital role of high-voltage electrical connectors in different industries. With over 300 years of combined experience in connector technology, we deliver top-notch solutions that exceed industry standards. Our solutions ensure safe electrical transmission even in the most challenging environments.

Posted by MJAnderson on 5:40 am | Leave a Comment

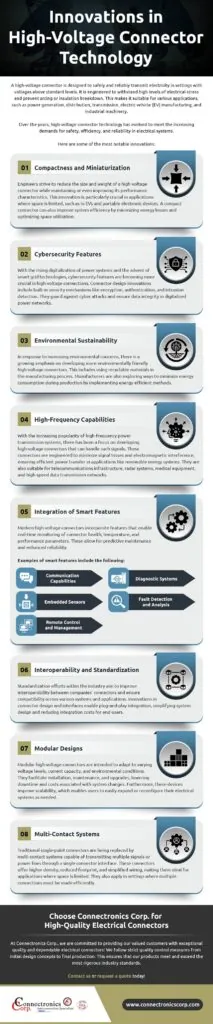

A high-voltage connector is designed to safely and reliably transmit electricity in settings with voltages above standard levels. It is engineered to withstand high levels of electrical stress and prevent arcing or insulation breakdown. This makes it suitable for various applications, such as power generation, distribution, transmission, electric vehicle (EV) manufacturing, and industrial machinery.

Over the years, high-voltage connector technology has evolved to meet the increasing demands for safety, efficiency, and reliability in electrical systems. Here are some of the most notable innovations:

1. Compactness and Miniaturization

Engineers strive to reduce the size and weight of a high-voltage connector while maintaining or even improving its performance characteristics. This innovation is particularly crucial in applications where space is limited, such as in EVs and portable electronic devices. A compact connector can also improve system efficiency by minimizing energy losses and optimizing space utilization.

2. Cybersecurity Features

With the rising digitalization of power systems and the advent of smart grid technologies, cybersecurity features are becoming more crucial in high-voltage connections. Connector design innovations include built-in security mechanisms like encryption, authentication, and intrusion detection. They guard against cyber attacks and ensure data integrity in digitalized power networks.

3. Environmental Sustainability

In response to increasing environmental concerns, there is a growing emphasis on developing more environmentally friendly high-voltage connectors. This includes using recyclable materials in the manufacturing process. Manufacturers are also exploring ways to minimize energy consumption during production by implementing energy-efficient methods.

4. High-Frequency Capabilities

With the increasing popularity of high-frequency power transmission systems, there has been a focus on developing high-voltage connectors that can handle such signals. These connectors are engineered to minimize signal losses and electromagnetic interference, ensuring efficient power transfer in applications like renewable energy systems. They are also suitable for telecommunications infrastructure, radar systems, medical equipment, and high-speed data transmission networks.

5. Integration of Smart Features

Modern high-voltage connectors incorporate features that enable real-time monitoring of connector health, temperature, and performance parameters. These allow for predictive maintenance and enhanced reliability. Examples of smart features include the following:

Communication capabilities: These allow communication interfaces to transmit data to centralized monitoring systems or control rooms.
Diagnostic systems: These can detect anomalies, predict potential failures, and recommend maintenance actions to prevent downtime and optimize performance.
Embedded sensors: These continuously monitor environmental conditions and connector performance, providing real-time data for analysis.
Fault detection and analysis: These can identify the root cause of faults and provide insights into potential corrective actions, helping to prevent costly equipment failures.
Remote control and management: These allow operators to remotely activate, deactivate, or adjust connector settings as needed, enhancing operational flexibility.

6. Interoperability and Standardization

Standardization efforts within the industry aim to improve interoperability between companies’ connectors and ensure compatibility across various systems and applications. Innovations in connector design and interfaces enable plug-and-play integration, simplifying system design and reducing integration costs for end-users.

7. Modular Designs

Modular high-voltage connectors are intended to adapt to varying voltage levels, current capacity, and environmental conditions. They facilitate installation, maintenance, and upgrades, lowering downtime and costs associated with system changes. Furthermore, these devices improve scalability, which enables users to easily expand or reconfigure their electrical systems as needed.

8. Multi-Contact Systems

Traditional single-point connectors are being replaced by multi-contact systems capable of transmitting multiple signals or power lines through a single connector interface. These connectors offer higher density, reduced footprint, and simplified wiring, making them ideal for applications where space is limited. They also apply in settings where multiple connections must be made efficiently.

Choose Connectronics Corp. for High-Quality Electrical Connectors

At Connectronics Corp., we are committed to providing our valued customers with exceptional quality and dependable electrical connectors! We follow strict quality control measures from initial design concepts to final production. This ensures that our products meet and exceed the most rigorous industry standards.

Posted by MJAnderson on 5:20 am | Leave a Comment

Hermetic connectors are specialized electrical connectors designed to maintain a completely sealed and airtight environment around electrical contacts. This sealing prevents the ingress of gases, liquids, and other contaminants, ensuring the integrity and reliability of electrical connections in harsh or extreme environments. They are typically used in industries where equipment integrity is non-negotiable, including aerospace, military, and medical.

This article delves into the materials, design, and manufacturing processes that make hermetically sealed connectors indispensable in critical applications.

Materials Used in Hermetically Sealed Connectors

The choice of materials is fundamental to the effectiveness of hermetic connectors. Options include:

1. Stainless Steel

Stainless steel is popular for hermetic connectors due to its exceptional corrosion resistance and mechanical strength. It can withstand exposure to moisture, chemicals, and high temperatures without compromising its structural integrity.

2. Titanium

Titanium offers an excellent strength-to-weight ratio and is highly resistant to corrosion. It can also endure extreme temperatures and pressures, making it suitable for applications in aerospace and marine environments.

3. Kovar

Kovar is a nickel-cobalt ferrous alloy prized for its low coefficient of thermal expansion. This makes it compatible with glass-to-metal sealing processes, ensuring a reliable hermetic barrier against moisture and contaminants.

4. Ceramics

Alumina and zirconia ceramics are widely used in hermetically sealed connectors for their excellent insulating properties and resistance to high temperatures. These materials provide electrical insulation between conductive components and can withstand thermal cycling and mechanical stress.

Design Principles of Hermetic Connectors

Designing hermetically sealed connectors focuses on ensuring a perfect seal and reliable electrical performance. Key elements include:

Sealing Mechanism

Hermetic connectors are designed with specialized seals, typically made through glass-to-metal or ceramic-to-metal bonding. This ensures an airtight and watertight seal, preventing the ingress of gases, liquids, and contaminants that could compromise the integrity of the connection.

Contact Configuration

The arrangement of contacts within the connector is meticulously designed to minimize electrical resistance and maximize signal integrity. Whether a single pin or a complex array of contacts, each configuration is engineered to ensure reliable electrical conductivity and minimal signal loss.

Shell Design

The connector’s outer shell is carefully designed to provide mechanical protection and a secure connection. This includes various considerations — such as the shell’s shape, size, and material — and features like locking mechanisms or threaded fittings. The goal is to ensure the connector remains firmly connected, even under intense vibration, shock, or thermal expansion conditions.

Shielding

Many hermetic connectors incorporate shielding to protect against electromagnetic interference (EMI). This is essential in environments where electronic noise can disrupt signal integrity, such as in military communications or sensitive medical equipment.

Environmental Considerations

Hermetically sealed connectors are often deployed in environments characterized by extreme temperatures, pressure, humidity, or exposure to corrosive substances. As such, the design must consider these environmental factors and incorporate features to withstand such conditions without compromising performance.

Key Manufacturing Processes

Manufacturing hermetically sealed connectors involves several meticulous processes to ensure each connector meets stringent quality standards. These include the following:

Machining

Advanced techniques such as computer numerical control (CNC) machining are employed to create metal and ceramic components with tight tolerances and intricate designs. This ensures that each component meets the specifications for perfect fit and optimal performance.

Sealing

This process involves carefully joining the metal and ceramic parts to create a hermetic barrier. Depending on the materials used and the specific design requirements, various sealing techniques may be employed, including glass-to-metal sealing and brazing.

Testing and Quality Assurance

Each connector undergoes rigorous testing to verify its hermeticity, mechanical integrity, and electrical performance. These may include leak detection, thermal cycling, and electrical continuity checks.

Partner With Connectronics for Reliable Connector Solutions!

Connectronics Corp. specializes in designing and manufacturing custom connectors and interconnection systems. With over 300 years of experience, we craft connectors tailored to specific requirements in various sectors, such as avionics, aerospace, medical, nuclear, and more. As an AS9100D with ISO9000-2015 certified company, we ensure consistent products and services that meet and exceed customer expectations.

Request a quote today to learn more about our products and services!

Posted by MJAnderson on 5:04 am | Leave a Comment

Hermetically sealed connectors are critical components designed to ensure gas-tight and liquid-tight connections, which are essential for maintaining system integrity in demanding environments. They are indispensable in industries such as aerospace, defense, and medical devices, where reliable connections are crucial for safety. Recent innovations have focused on improving sealing, reducing connector size, and enhancing material strength — leading to better performance in challenging conditions.

This article explores the latest advancements in hermetically sealed connector design, addressing the needs of industries requiring durable and reliable connections in challenging settings.

1. Miniaturization and High-Density Solutions

As electronic devices become smaller, the demand for miniaturized hermetic connectors with high-density configurations has increased. These connectors save space and reduce weight while maintaining performance, making them ideal for aerospace, medical devices, and military applications. Accommodating many connections in a compact footprint ensures efficient use of limited space without compromising reliability and durability.

2. Advanced Materials and Coatings

Advanced materials such as titanium, ceramic, glass, and specialized coatings enhance corrosion resistance and electrical performance. Superior strength and resistance to harsh environmental factors make these materials suitable for extreme conditions. Durability and reliability are significantly improved in high-pressure, high-temperature, and corrosive environments, ensuring long-term performance and reducing maintenance needs.

3. Fiber Optic Hermetic Connectors

The integration of fiber optic technology in hermetically sealed connectors enables high-speed data transmission with minimal signal loss. These connectors are essential for telecommunications, aerospace, and defense applications requiring efficient data transfer. They ensure robust performance in environments where traditional copper connections might fail, which provides a critical advantage in maintaining communication and data integrity.

4. Improved Sealing Technologies

Advancements in sealing technologies, including laser welding and advanced epoxy sealing methods, provide better protection against environmental factors. These techniques guarantee that the connectors are resistant to moisture, dust, and chemicals, which extends their lifespan. They also safeguard against external contaminants that could otherwise compromise the connector’s performance.

5. High-Frequency and High-Voltage Capabilities

Designing connectors to handle higher frequencies and voltages meets the demands of modern applications. Higher power transmission and maintained signal integrity are important in telecommunications and industrial automation. Supporting higher electrical loads enables more advanced and efficient system designs.

6. Modular and Customizable Designs

Emphasis on modular and customizable connector designs allows for flexibility in tailoring connectors to specific application needs. This modularity means connectors can be easily adapted for various uses, which improves integration and performance across different industries. Moreover, customizable solutions ensure that specific requirements are met, which enhances system efficiency and effectiveness.

7. Embedded Electronics

Incorporating embedded electronics within connectors adds functionalities such as signal conditioning, filtering, and smart diagnostics. Adding these capabilities directly within the connector improves overall system performance. These advanced features make the connectors suitable for high-tech applications where reliability and advanced functionality are paramount.

8. Enhanced Thermal Management

Advanced thermal management solutions in hermetic connectors are becoming crucial with modern electronic systems’ increasing power densities and operational temperatures. These connectors incorporate materials and designs that dissipate heat efficiently, ensuring the stability and longevity of connections in high-temperature environments. This advancement is particularly important in aerospace and automotive applications, where excessive heat can significantly impact performance and reliability.

9. Environmental Sensing Capabilities

Integrating environmental sensing capabilities into hermetic connectors allows real-time temperature, humidity, and pressure monitoring. They can provide critical data for early detection of potential issues, enabling proactive measures in industries such as oil and gas and underwater exploration.

Choose Connectronics for Innovative Hermetically Sealed Connectors!

At Connectronics Corp., we provide advanced hermetically sealed connectors that have set the industry standard since 1988. Our products are designed to excel in diverse industrial applications, offering unparalleled reliability and performance in challenging environments. As an AS9100D with ISO 9000-2015 certified company, we ensure that our connectors consistently meet rigorous quality standards.

Request a quote today to discover how our advanced connector solutions can enhance the efficiency of your projects!
